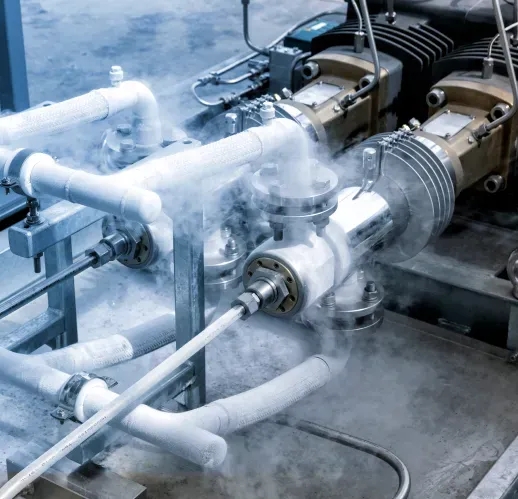

RECIPROCATING PUMPS

VT-3 Series

Reciprocating pumps VT-3 guarantee an extensive flow rate and high pressure range, providing also easy maintenance and low operation costs.

APPLICATIONS

  • Big sized L-CNG refueling stations for cars/trucks/buses, mother stations, tube trailer filling
[object Object]
Scroll to discover

Features and information

TECHNICAL FEATURES

  • Compatible with Cold Converter and Thermosyphon storage tanks
  • Modular assembly (from Simplex to Triplex)
  • High efficiency
  • Low operating noise
  • Quick maintenance thanks to the integrated cartridge seal system

TRANSFERRED FLUIDS

  • LNG

CRANKDRIVE LUBRICATION

  • TW 10 – Oil lubrication

STANDARD SUPPLY

  • Painted steel frame
  • Cryogenic pump
  • Electric motor
  • Transmission by belt and pulleys or gearbox and couplings
  • Double Pulsation damper

STANDARD ACCESSORIES

  • Suction flexible hose
  • Return flexible hose
  • Low pressure safety valve
  • High pressure safety valve
  • High pressure pneumatic valve for venting
  • Check valve
  • Pressure gauge
  • Pressure switch
  • Temperature sensor for cool down
  • Temperature sensor for cavitation
  • Temperature sensor for leaks detection
  • Junction box

STANDARDS

Designed according to:

  • European Directive Machinery
  • European Directive PED
  • European Directive ATEX
  • EIGA/IGC/CGA guidelines

OPTIONAL ACCESSORIES

  • Flushing system with nitrogen gas
  • Forced oil lubrication system
  • High pressure pneumatic valve for venting
  • Motor suitable for VFD
  • Complete automatic system available on demand

TEST AND CHECKS

  • Dimensional control of each mechanical component before assembly
  • Performance test with LIN available for class and customer

Product details

Looking for more insights and a complete overview? Download the full technical data sheet for further information on this product.
